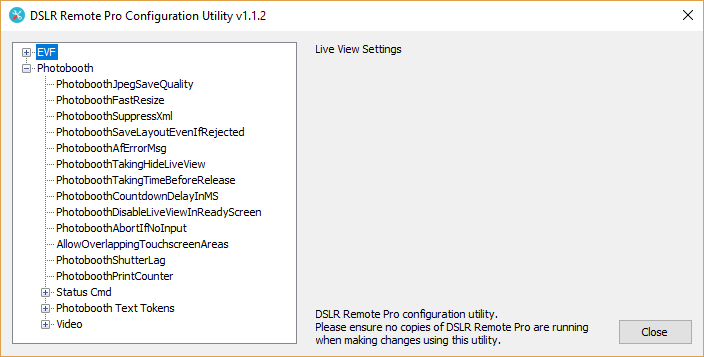

The Configure.exe Utility
The Configure.exe utility provides access to less commonly used Remote Pro settings that are not exposed in the main interface. It is located in the installation folder (usually C:\Program Files (x86)\Breezesys\Remote Pro). Double-click Configure.exe to run it.
EVF Settings
| Setting | Description |
|---|---|
EvfIntervalInMs |
Live view refresh interval in milliseconds (default 80). Smaller values give faster refresh. May affect GIF timing in video booth mode. |
EvfFocusPeakingThreshold |
Threshold for focus peaking (default 200). |
Photobooth Settings
| Setting | Description |
|---|---|
PhotoboothJpegSaveQuality |
JPEG quality for saved print copies (default 90). |
PhotoboothFastResize |
Uses a faster (slightly lower quality) resize algorithm on slow computers. |
PhotoboothSuppressXML |
Disables writing of the XML summary file after each session. |
PhotoboothSaveLayoutEvenIfRejected |
Saves the JPEG print copy even when the user rejects photos in the confirmation screen. |
PhotoboothAfErrorMsg |
Error message displayed to users when the camera cannot lock AF focus. |
PhotoboothTakingHideLiveView |
Hides live view when the taking.jpg screen is displayed. |
PhotoboothTakingTimeBeforeRelease |
Time in ms before taking a photo that the taking.jpg screen is displayed. |
PhotoboothCountdownDelayInMS |
Offset in ms for countdown text timing. |
PhotoboothShutterLag |
Compensates for camera shutter lag in ms. |
PhotoboothDisableLiveViewInReadyScreen |
Disables live view in the ready screen; enables it only during countdown. |
PhotoboothAbortIfNoInput |
Aborts shooting if the user does not enter anything when keyboard is shown at start of sequence. |
AllowOverlappingTouchscreenAreas |
Allows touchscreen areas to overlap so one touch can activate multiple actions. Use with caution. |
PhotoboothPrintCounter |
Sets the starting value of the print counter. |
PhotoboothTapCountdown3Sec |
Allows tapping the screen to set a 3-second countdown when the remaining time is 15 seconds or more. |
PhotoboothPhotoPreviewX/Y/W/H |
Position and size of preview photos in the preview.jpg screen. |
EnablePrintCopiesStatusText |
Shows a brief status display when changing print copy count. |
InfoInactivityTimeout |
Timeout in seconds for optional information screens. |
Photobooth Setup Wizard Defaults
| Setting | Description |
|---|---|
WizardDownloadFolder |
Default download folder (default: documents\\PhotoboothImages\\dateLess8h) |
WizardFirstPhotoInterval |
Countdown for first photo in seconds (default 5) |
WizardPhotoInterval |
Countdown for remaining photos in seconds (default 3) |
WizardGifNumFramesToCapture |
Number of frames for boomerang GIFs (default 15) |
WizardVideoClipLengthInSecs |
Video clip length in seconds (default 10) |
Sharing Settings
| Setting | Description |
|---|---|
SharingSuccessScreenDuration |
Time in seconds to show the success screen |
SharingOfflineScreenDuration |
Time in seconds to show the offline screen |
SharingErrorScreenDuration |
Time in seconds to show the error screen |
Status Command Settings
| Setting | Description |
|---|---|
PhotoboothStatusCmdEnable |
Enable running of external commands when status changes |
PhotoboothStatusCmd |
Command to run when screen changes |
PhotoboothStatusCmdXML |
Command to run when XML summary is written |
See External Commands for details.
Photobooth Text Tokens
The following registry values can be used as tokens in caption text: {PhotoboothText1} through {PhotoboothText5}. Useful for printing data from RFID card readers or other external sources.
Video Settings
| Setting | Description |
|---|---|
VideoboothKeyboard |
Shows a touchscreen keyboard in video booth mode. Set to 1 to show at start, 2 to show after capture. |
