Connecting the hardware together requires wiring the Pulse cable to the Power Supply and the I-Pac2 Controller Board. In this example, we are using a screw terminal to make connection to the power supply easy.

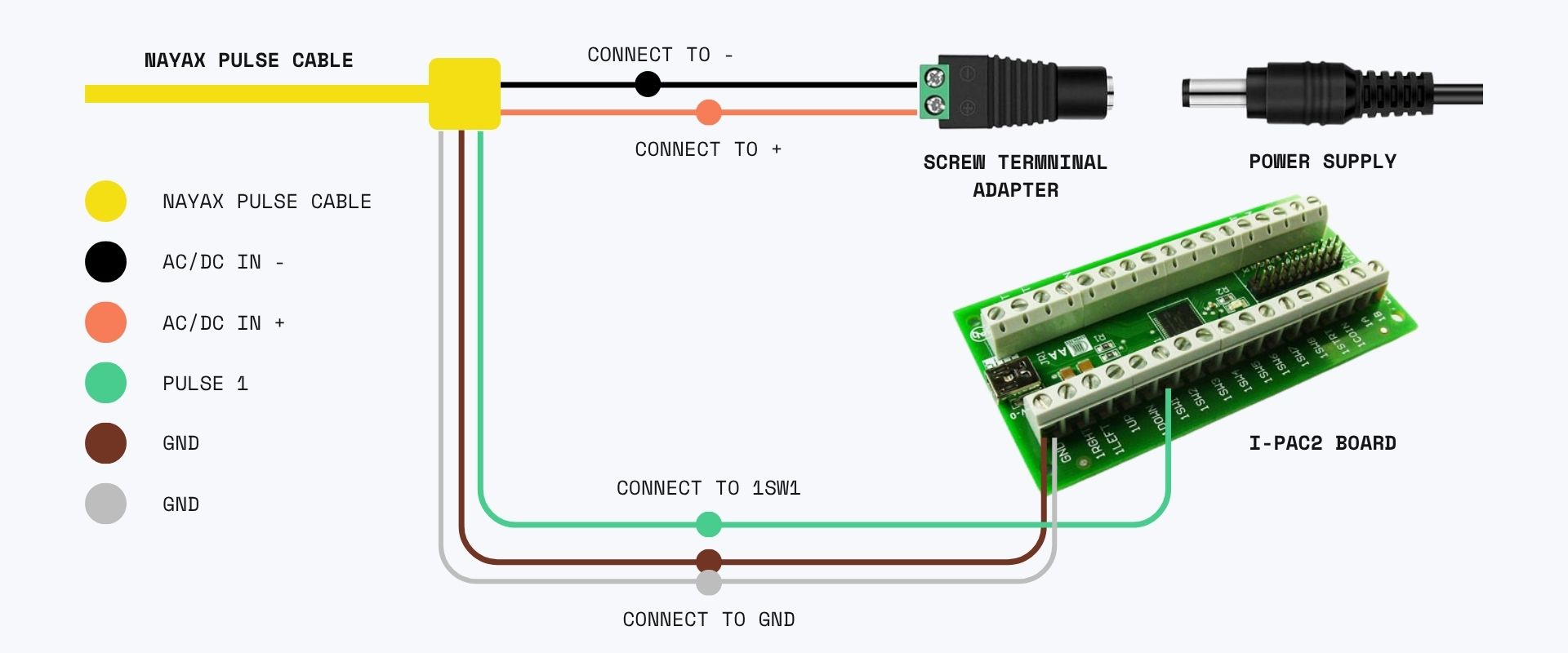

Wiring in the Pulse Cable
The Nayax Pulse cable may have 10+ wires coming out of it, but we only need to use the ones mentioned below. The rest can be left in place.
- Connect the AC/DC In – wire(s) to the – Negative terminal of the screw adapter
- Connect the AC/DC In + wire(s) to the + Positive terminal of the screw terminal adapter
- Connect the Pulse1 wire to the 1SW1 terminal of the I-Pac2 board
- Connect the GND wire(s) to the GND terminal of the I-Pac2 board

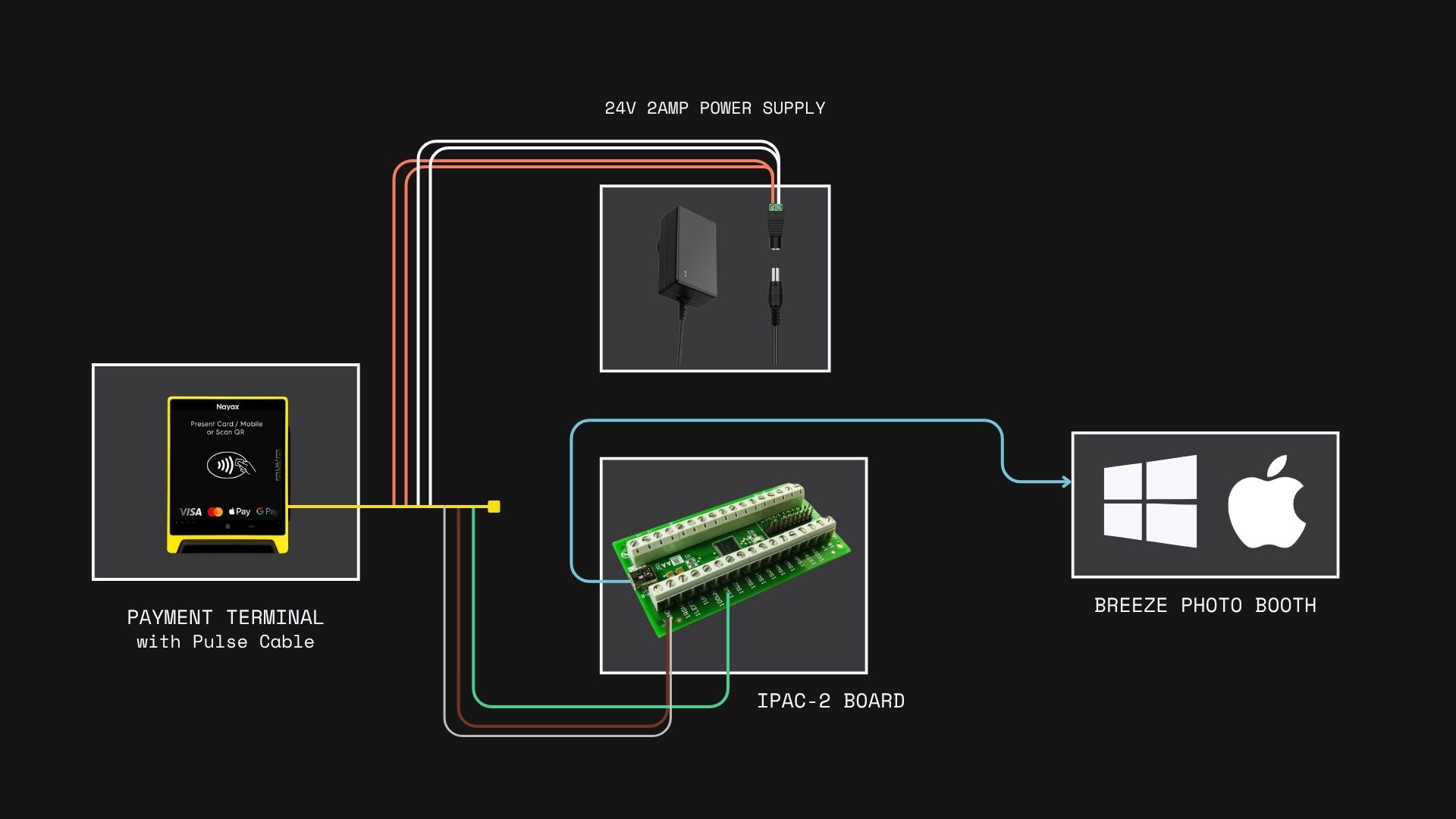

Completed setup
Once all wired up, you will need to connect the I-Pac2 board to your device running Breeze. This is done via a USB cable. Your final setup should look something like this:
