Printer Setup

Printer Setup

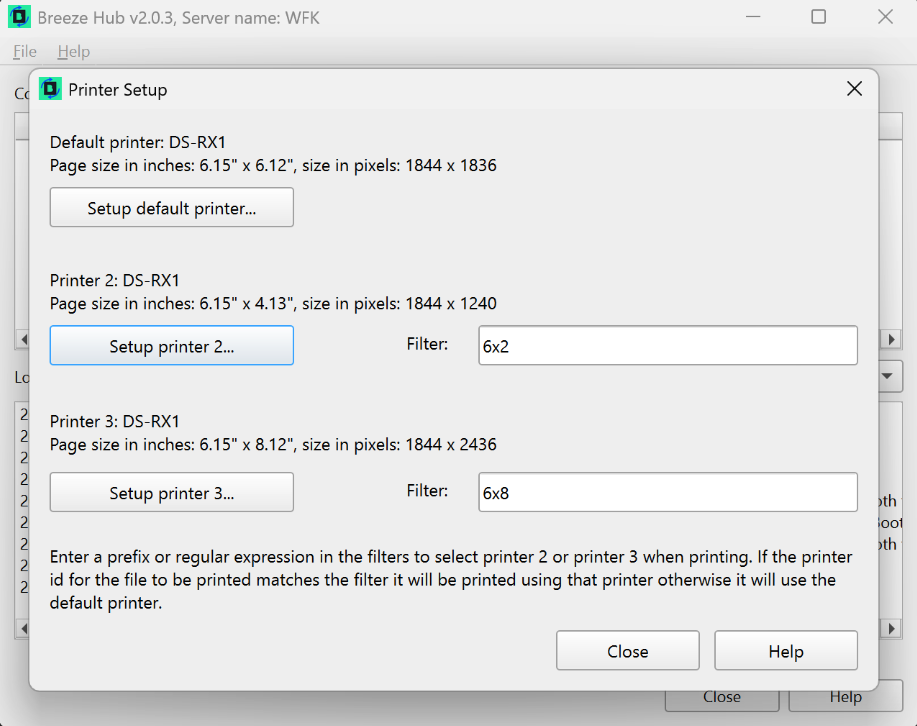

Configure printers via File > Printer Setup. This must be done before printing will work. Breeze Hub supports up to three printers — a default printer plus two additional printers.

The current default printer name and page size are displayed at the top of the dialog.

Default Printer

Click Setup default printer… to select and configure the printer used for all standard print jobs. At minimum the default printer must be set for printing to function.

Multiple Printers

Printer 2 and Printer 3 can be configured to route jobs to different printers based on output size or printer type — for example, routing 6×2 strip jobs to one printer and 6×8 large prints to another.

Each additional printer has a Filter field. The filter is compared against the Printer ID set in Breeze Booth or Breeze Remote Pro on a per profile basis. Filters can be a simple text prefix or a regular expression.

Breeze Hub checks Printer 2 first. If the filter does not match, it checks Printer 3. If neither matches, the job is sent to the default printer.

Example:

A regular expression example: 6x2.*DNP would match only 6×2 jobs directed to a DNP printer.

Filter values must match the Printer ID set in Breeze Booth or Breeze Remote Pro exactly.
